CNC bending
Four Trumpf bending presses with a maximum bending length of 3200 mm and one ZOPF horizontal press are used for bending sheet metal. CNC-assisted control to ensure repeatability and precision.
On the latest OHL 5170 machine, we use the ACB (Angular Calibration System) with touch tools, allowing us to eliminate bending inaccuracies due to suspension and material anisotropy.

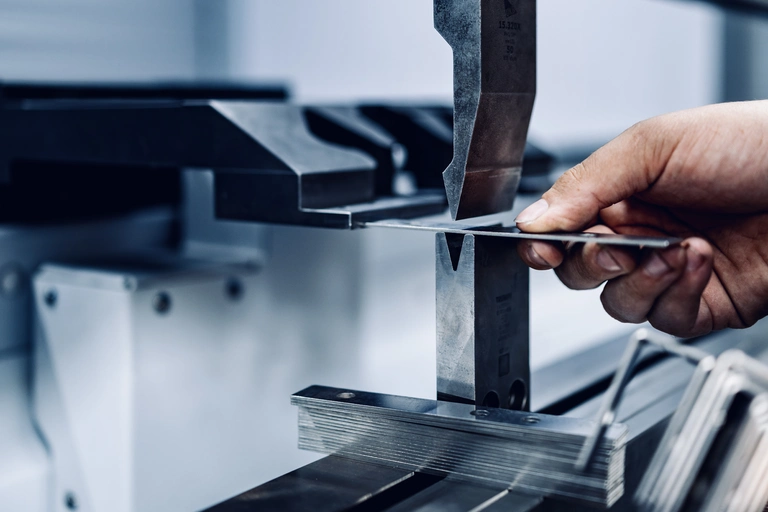

We have a range of top and bottom tools with different curvature radii, as well as special swing dies and Z rails

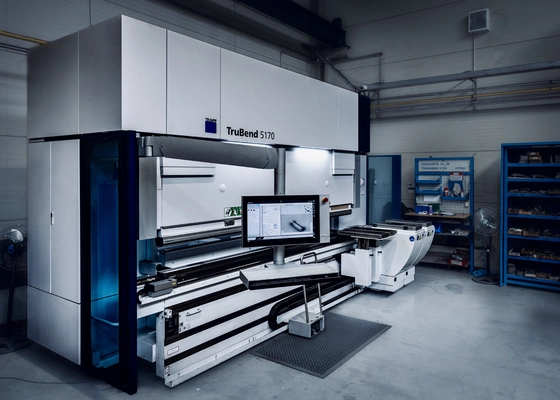

Trumpf TruBend 5170
- Max bend length 3,200 mm
- Pressing force 1,700 kN
- ACB metering

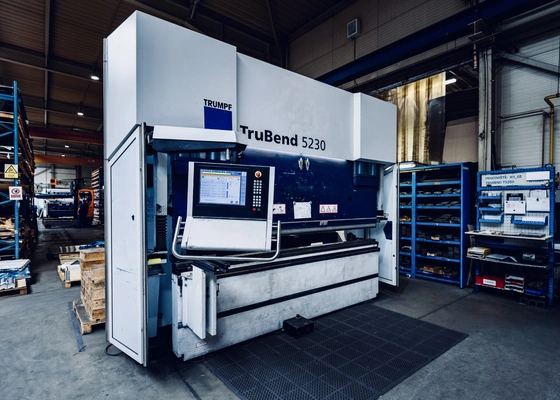

Trumpf TruBend 5230
- Max bend length 3,200 mm
- Pressing force 2,300 kN

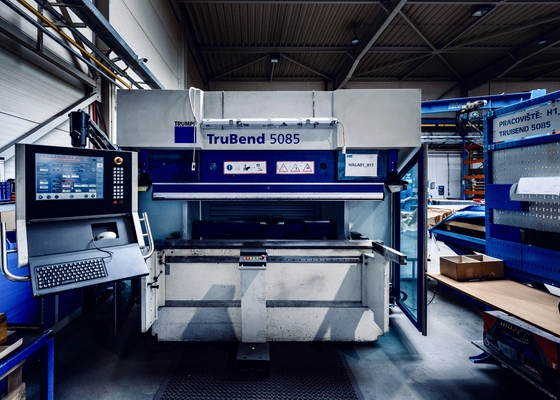

Trumpf TruBend 5085
- Max bend length 2,000 mm
- Pressing force 850 kN

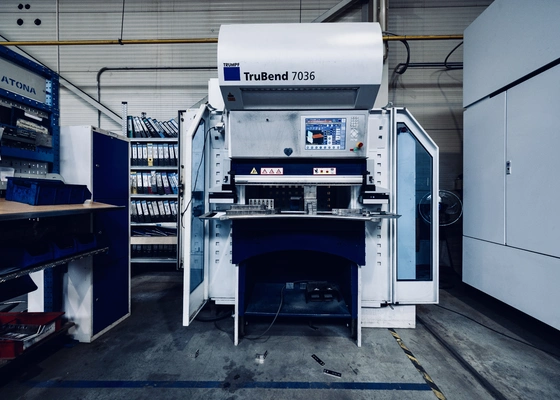

Trumpf TruBend 7036
- Max bend length 1,000 mm
- Pressing force 360 kN

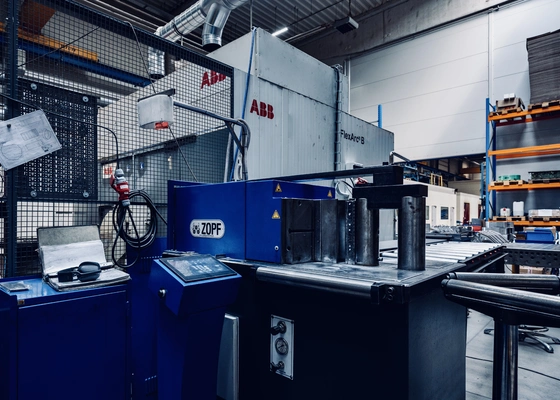

ZOPF T800
- Pressing force 800 kN
